Height |
2300mm on side with columns 2500mm on page free CONTRIBUTIONS |
|
Dimensions |
3x4x2.3m ( length x width x height ) |
|
Bars |
100x100mm |
|
Ray |
105x120mm |
|
FRONT case |
100x120mm |
|
Fall Laterite |
100x120mm |
|
color |
Grey anthracite |
- It includes: All the pieces required assembly
- Recessed LED
-
Surface : Electrostatically painted
- Alloy Aluminum : 6063
- Warranty : 5 years

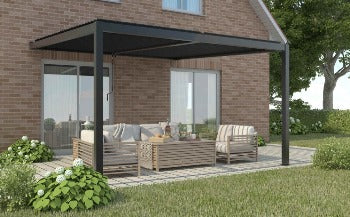

Pergola X Bioclimatica is a roof made of aluminum slats folded along aluminum guides. Its structure is made of aluminum 6063 painted in an electrostatic field, which gives it strength and durability.
The aluminum slats are foldable and equipped with a drainage channel, when extended creates a waterproofing effect that covers the entire terrace covers. Its resistance allows a water flow of up to 5 l/minute and 25 kg/slat in snowy conditions, it is recommended to keep the slats in the open position during heavy snowfall.
Each column of the gazebo has a rainwater collection system , which will help you on rainy days. Easy to assemble and operate, Pergola X will extend your outdoor season.

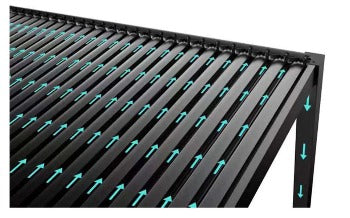

Due to the difference in height between the side with the wall attachment and the side with the columns, the roof of the pergola is slightly inclined to facilitate water drainage .
The insect and UV protection net set is compatible with Pergola X and can be purchased separately.
