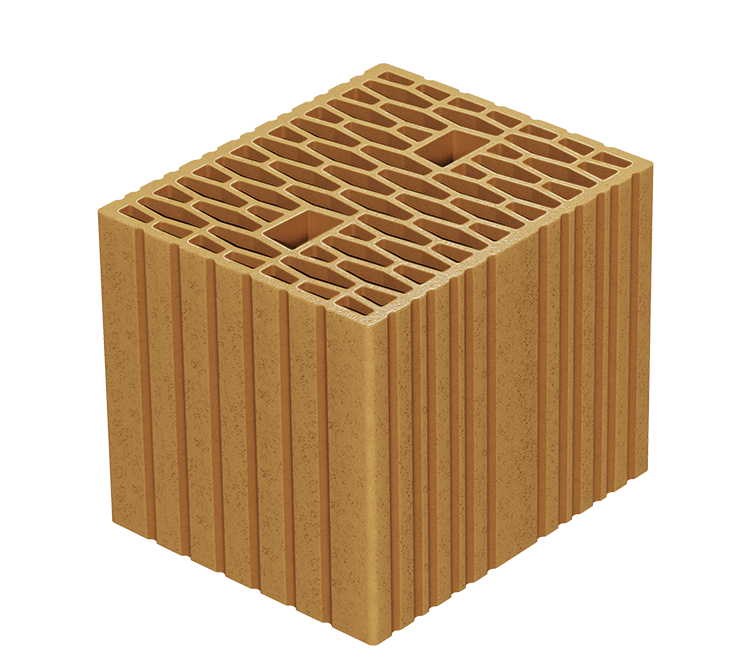

EVOCERAMIC 29
- Bricks for the construction of 29 cm or 24 cm thick masonry
- Dimensions: 240/290/238 mm
- Masonry type: inside/outside; load-bearing/non-load-bearing masonry
- Wall thickness: 290 mm
- Thermal resistance: 1.66 m2K/W
***Prices depend on quantity and location
***Minimum order quantity: 1 pallet
Technical data
|
Dimensions |
240/290/238 mm |
|
Thermal resistance |
1.66 m2K/W |
|
Thermal conductivity (λ10, dry, block) |
0.175 W/mK |
|
Average compressive strength (fb, med) |
10 N/mm² |
|
Empty volume |
<55% |
|
Average weight/stone |
approx. 12kg |
|
Bulk density |
approx. 740 kg/m³ |
|
Reaction to fire |
Class A1 |
|
Number of bricks/m³ masonry |
55/55.5 pcs. |
|
Number of bricks/m² of masonry |
16/13.3 pcs. |
|
Mortar consumption per m³ of masonry |
99 liters/m³ |
|
Work effort/m³ masonry |
3.19 hour/m³ |
|
Masonry type |
Load-bearing/non-load-bearing masonry |
|
Build target |
Inside/Outside |
|
Number of bricks/pallet (1000x1200mm) |
96 pcs./pallet |
|
Number of m³ masonry/pallet |
1.74 m³/pallet |
